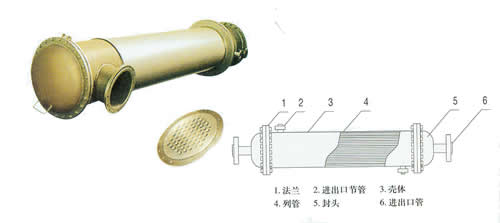

Pipe bundle condenser

[pipe bundle condenser]

The tubular condensers produced by our factory can be divided into carbon steel tubular condensers, stainless steel tubular condensers and carbon steel and stainless steel mixed tubular condensers according to their materials, fixed tubesheet, floating head and U-tube heat exchangers according to their forms, and single tube pass, double tube pass and multi tube pass according to their structures. The heat transfer area is 0.5-500m2, which can be customized according to the needs of users.



Nominal diameter Number Number of tubes Heat exchange area Cross sectional area of tube side channel Nominal pressure
Pipe length (m) φ25×2.5
1500 2000 3000 4000 6000 φ25×2
159 1 14 1.5/1.62 22.17 33.27     0.0044/0.0049 7.92/8.82 0.25
219 1 26 3/3.00 4/4.02 6/6.06 8/8.1   0.0082/0.0090 14.76/16.20 0.6
  2 26 3/3.00 4/4.02 6/6.06 8/8.81   0.0041/0.0045 7.38/8.01 1.0
273 1 44 5/5.08 7/5.18 10/10.26 14/13.72 21/20.63 0.0138/0.0152 24.84/27.36 1.6
  2 40 5/4.62 6/6.19 9/9.33 12/12.47 19/18.76 0.0063/0.0069 11.24/12.42 2.5
325 1 60 7/6.93 9/9.28 14/14.00 19/18.71 28/28.13 0.0188/0.0208 33.84/37.44 0.6
  2 56 6/6.47 9/8.66 13/13.05 17/17.46 36/26.26 0.0088/0.0097 15.84/17.46 1.0
400 1 119 14/13.47 18/18.41 28/27.76 37/37.10 55/55.8 0.0374/0.0412 67.32/74.16 1.6
  2 110 13/12.70 17/17.02 26/25.66 34/34.20 50/51.58 0.0173/0.0190 31.14/34.20 2.5
500 1 185     45/4.15 55/57.68 85/86.74 0.0581/0.0641 104.58/115.38  
  2 180     40/41.99 55/57.68 85/86.74 0.0283/0.0312 50.94/56.16  
600 1 269     60/62.7 85/83.88 125/126.13 0.0845/0.0932 152.10/167.76  
  2 266     60/32.05 80/82.94 125/14.72 0.0418/0.0461 75.24/83.98  
700 1 379     90/88.41 120/118.17 175/177.71 0.0091/0.1313 214.38/236.34  
  2 358     85/83.51 110/111.62 165/167.85 0.0562/0.0620 101.16/111.60  
800 1 511     120/119.20 160/159.16 240/239.60 0.1605/0.1770 288.90/318.60  
  2 488     115/113.83 150/152.16 230/228.81 0.0767/0.0845 138.06/152.10  
900 1 649     150/151.39 200/202.36 305/304.3 0.2039/0.2248 367.02/404.46  
  2 630     145/146.96 195/196.44 295/295.40 0.0990/0.1091 178.20/196.38  
1000 1 805     185/187.78 250/251.00 375/377.45 0.2529/0.2788 455.22/501.74  
  2 792     185/184.75 245/246.95 370/371.36 0.1244/0.1374 223.92/246.96
